Team Losi Sender Umbau auf Arduino fuer Micro Crawler und Rally
Der Urlaub rueckt naeher! Zeit um den Crawler zu verkleinern... (oder zumindest den Sender davon)
Vorher:

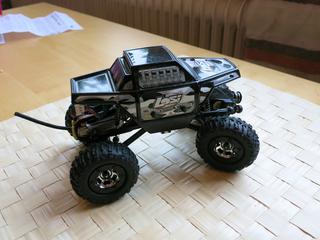

 Team Losi Micro Crawler with body |

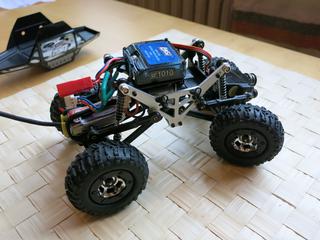

 Team Losi Micro Crawler without body |

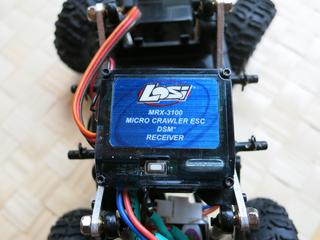

 Team Losi Micro Crawler integrated ESC |
 Team Losi DSM TX |
Mal aufmachen:

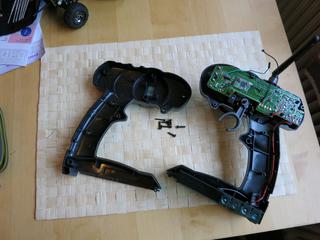

 Team Losi DSM Transmitter open |

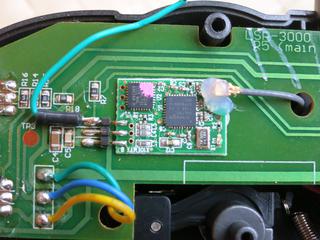

 Team Losi DSM Transmitter X10EMTX |
Mal reinsniffern:
 Team Losi DSM Transmitter X10EMTX PPM Signal on DSO Quad |
Mal rumloeten:

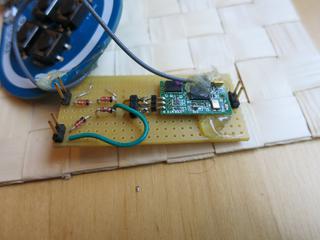

 Arduino Esplora Shield for X10EMTX |
 Arduino Esplora Shield for X10EMTX |

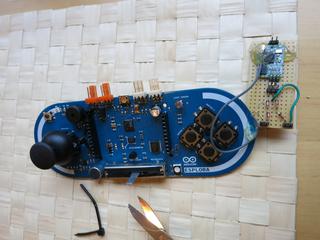

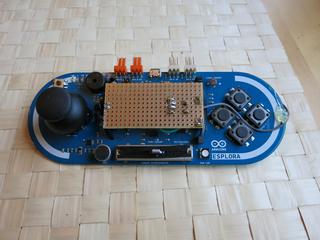

 Arduino Esplora Shield for X10EMTX assembled |
|
Fertig:

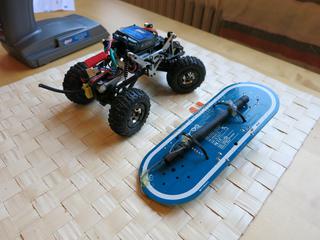

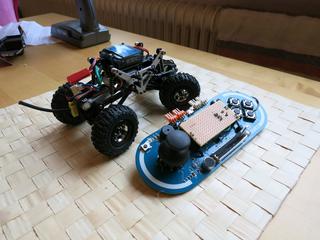

 size comparision MRC, Esplora |

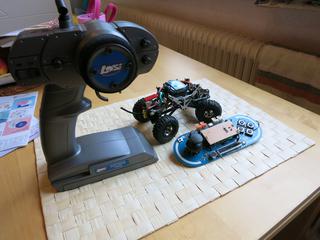

 size comparision MRC, Esplora, original TX |
 Esplora shield backside with antenna |
|
Naechstes Auto:

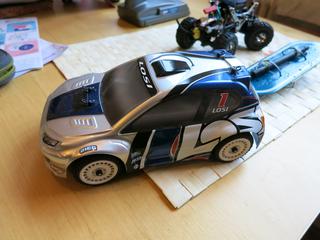

 Team Losi Micro Brushless Rally |
Bei dem ist leider ein Servokanal andersrum belegt....
Kurz mal den 3D-Drucker starten und Micro Crawler mit Karosserie von Thingiverse <a href="http://www.thingiverse.com/thing:22977">http://www.thingiverse.com/thing:22977</a>

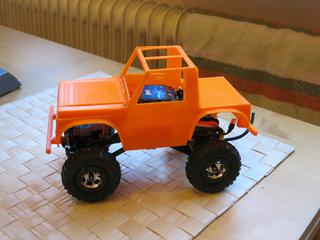

 Team Losi MRC with new body |
.oO(sieht doch gleich besser aus)
Technische Infos:
Das DSM-Modul X10EMTX im Sender initialisiert (bindet) sich automatisch beim Anlegen der Versorgungsspannung (3.3V)
Das Shield besteht nur aus 4 Dioden (2 Stueck als 5 auf 3.3V Converter, einmal VCC, einmal Daten), dem Modul und etwas Heisskleber als Zugentlastung fuer die Antenne
VCC und GND: Esplora die unteren zwei Pins Daten: Pin 7, Esplora, links der sechste Pin von unten
Joystick ist Gas/Lenkung. Keypad ist Trimmung (geht verloren bei Neustart). Wenn beim Einschalten des Esplora die oben oder die links Taste gedrueckt wird ist der Kanal invertiert.
Sourcecode V1 basierend auf http://code.google.com/p/generate-ppm-signal/ esplora_X10EMTX_v1_ino.ino
